How to Use the Cumulative Volume Delta Indicator

Read this article to find out:

• If the initiative comes from buyers, Market-Buy is matched with Limit-Sell → in this case, the delta is positive and equal to the volume of the trade.
• If the initiative comes from sellers, Market-Sell is matched with Limit-Buy → in this case, the delta is also equal to the volume of the trade, but with a minus sign.

Delta represents effort or pressure. The higher the positive delta, the stronger buyers’ pressure. A negative delta represents sellers’ pressure. Examining the delta dynamics is a method to observe the battle between buyers and sellers on the exchange over time.

Read more about the mechanics of exchange trading and matching orders in the articles:

• What is delta and cumulative delta for beginners?
• Order types, and how orders are placed

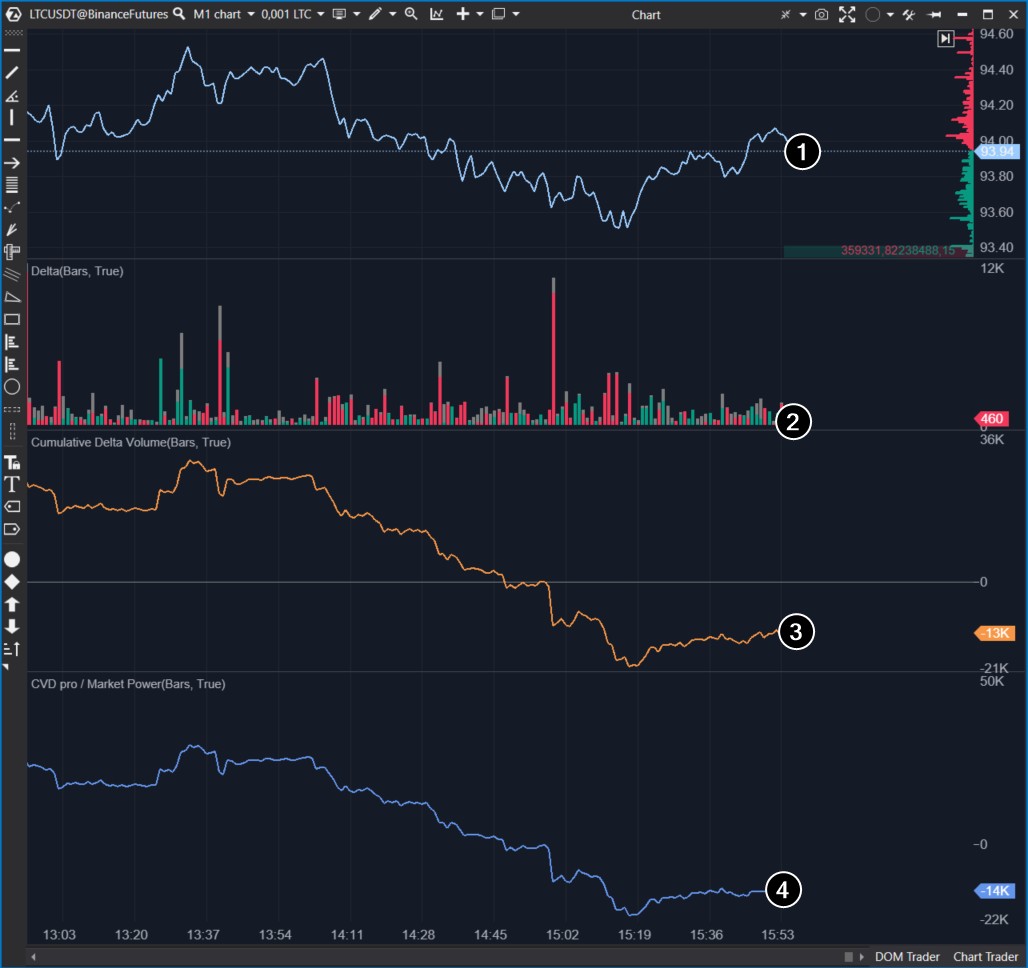

1. Linear price chart.
2. Delta indicator.
3. Cumulative Delta indicator. Each new value is added to the sum of the previous ones, which is why it is called “cumulative“. If you see a high red bar on the regular delta indicator, then on the cumulative delta indicator, there will be a corresponding decline (drop).
4. Cumulative Volume Delta Pro indicator with default values. CVD Pro fully replicates the trajectory of the cumulative delta indicator. What is the difference?

In the CVD Pro settings, there is an additional filter where you can set the minimum and/or maximum value of trade volumes that will be considered for calculating CVD Pro (see the example below).

For example, let’s set the Minimum Volume to 2000 and Maximum Volume to 0 (a zero value means that there is no upper threshold for the filter). With such settings, CVD Pro will display cumulative delta only for trades whose volumes exceed 2000 contracts (in this case, for futures from the LTCUSDT market).

• the orange line of the cumulative delta gradually decreases as the price moves downward;
• the blue line of CVD Pro does not change at the beginning of the downward movement, but at the end of the movement it begins to fall — this is a sign of the culmination of the trend.

Thanks to the built-in filter in CVD Pro, you can focus on changes in cumulative delta:

• only on large volumes (as shown in the chart above);
• only on small volumes;
• on volumes specified by “from and to“ values in the filter.

Since each market is unique, the filter in the CVD Pro indicator should be reconfigured when the market changes.

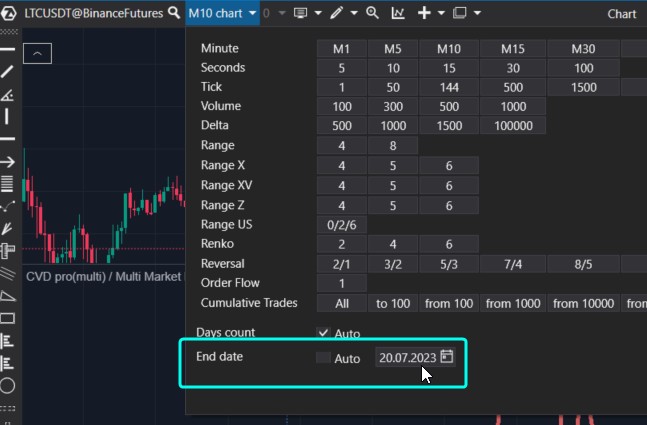

Another more technical feature is that to save resources, the indicator calculates only one day. If you need to study the dynamics of the CVD indicator on history, change the End Date setting in the timeframe settings menu, as shown below.

• add multiple CVD Pro to one window with different filter settings and different colors. To do this, specify the same value for the Panel parameter in each instance of the indicator;
• use CVD Pro (Multi), which has 5 built-in filters.

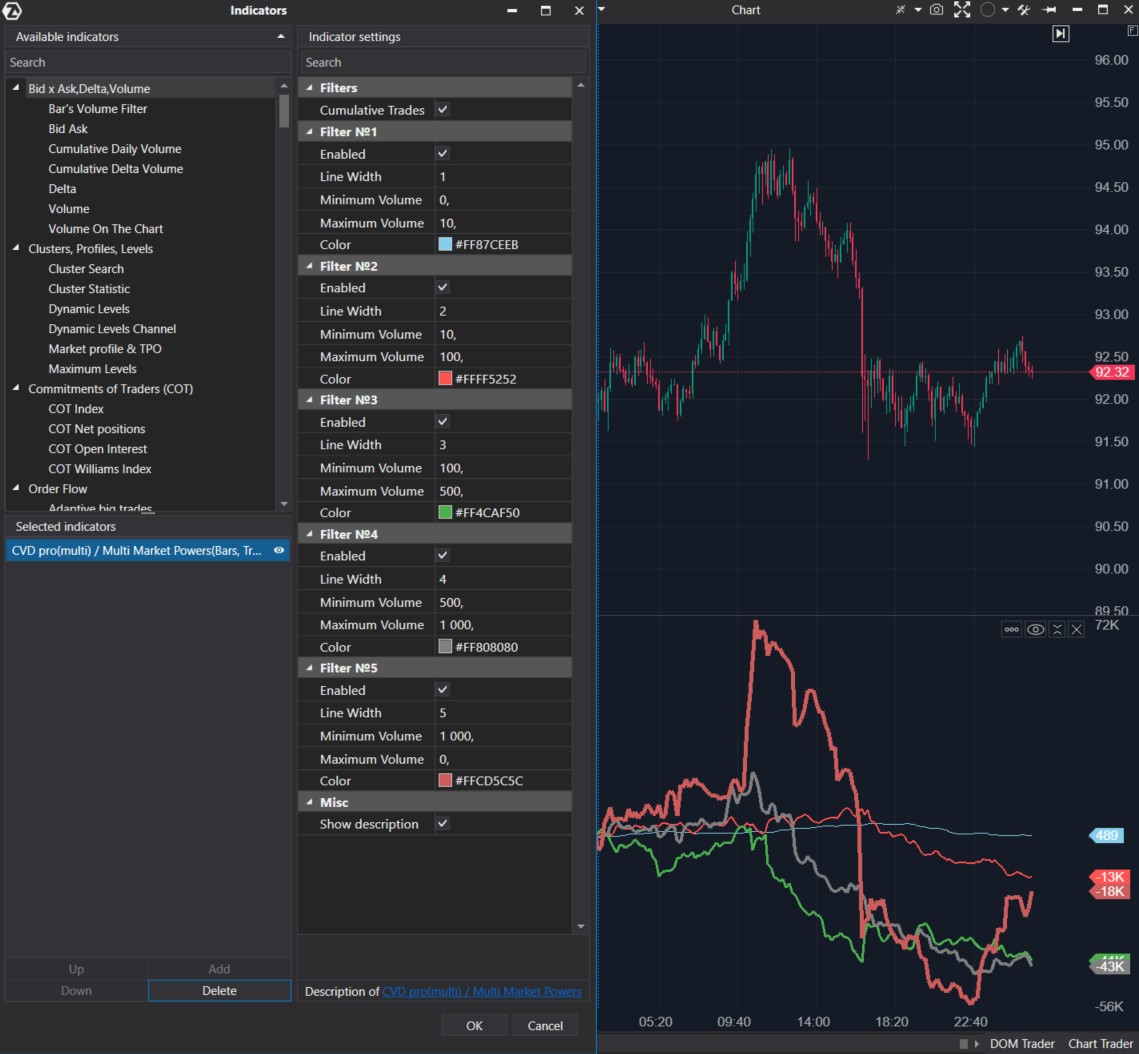

The screenshot below shows how the CVD Pro (Multi) indicator works. The filters are configured as follows:

• filter 1: trades with volume from 0 to 10;
• filter 2: trades with volume from 10 to 100;
• filter 3: trades with volume from 100 to 500;
• filter 4: trades with volume from 500 to 1000;
• filter 5: trades with volume from 1000 and higher.

The idea is simple — the larger the volume, the thicker the line.

• The thinnest line likely indicates the activity of numerous small traders—it was moving upwards before a sharp price drop (small traders were buying near the peak). Due to the small volumes for calculating this line, its dynamics may not be visible enough. You can uncheck the “Enabled” box for the other lines to focus specifically on the line created based on the first filter.
• The spikes of the thickest line indicate a pause in the current movement: the thick line sharply went up at the price peak and sharply dropped at the day’s minimum. What is it? Are big players trading at a loss? But then they would not have big capital. Maybe a market maker is aggregating small one-sided trades to make them appear as trades from a large player? Who knows…

In any case, using filters to separate cumulative delta into components can provide valuable information for tracking the activity of trader groups with different capitalizations.

More entertaining examples will be provided later.

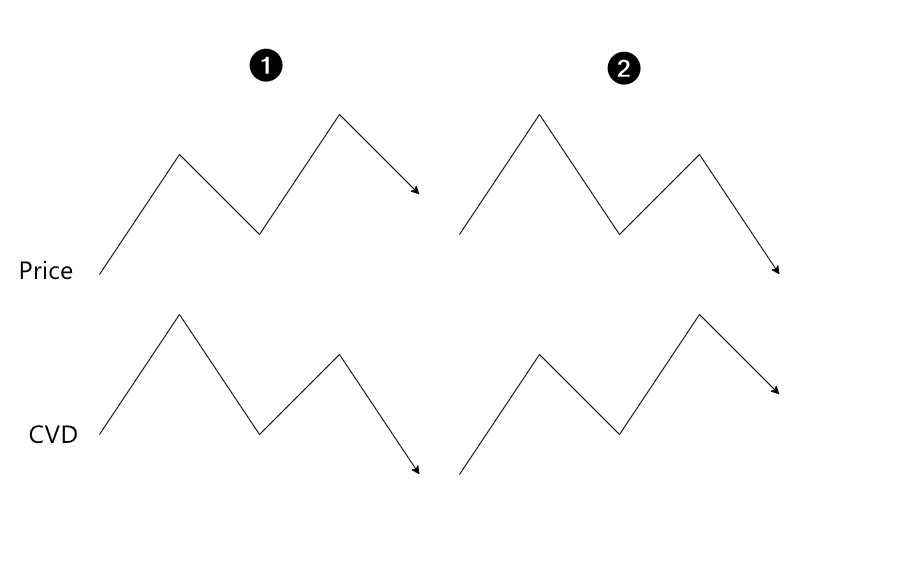

In theory, when the market is in an uptrend, higher price peaks and troughs should correspond to higher highs on the cumulative delta indicator line. In fact, this is not always the case.

1. if the price forms higher peaks but CVD does not, it indicates exhaustion of the uptrend;
2. if the price fails to form higher peaks but they are observed on the CVD line, it suggests absorption of the uptrend by limit sellers. You can easily observe this using the DOM Levels indicator, which visualizes the dynamics of large orders from the order book directly on the chart.

The opposite is true for a downtrend period.

However, the market is more complicated in reality. Moreover, CVD lines created with different filters may sometimes demonstrate opposite dynamics, which provides valuable information for analysis.

Let’s go through a few practical examples to make it easier for you to start using Cumulative Volume Delta with filters if you have not done so yet. We will show an interesting trick for advanced users of ATAS: how to create an oscillator based on CVD.

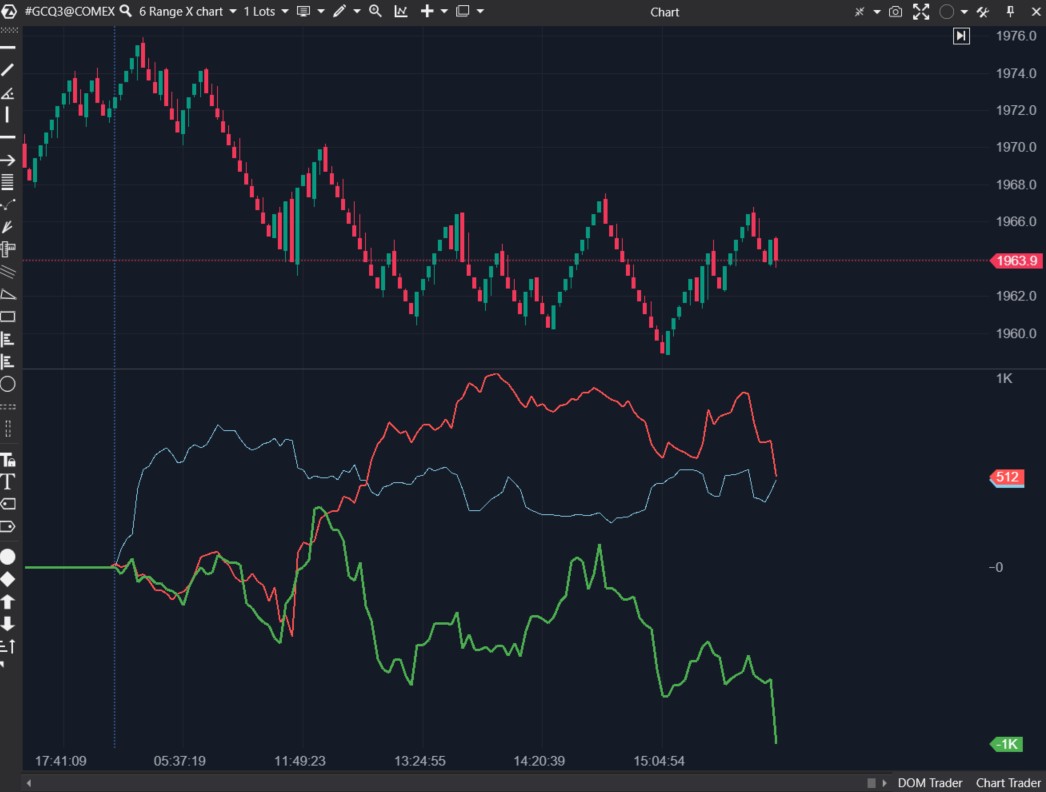

The CVD Multi indicator is configured as follows:

• the blue thin line is built based on the smallest volumes — 1 or 2 contracts;
• the red line of medium thickness is built based on relatively average volumes — from 3 to 15 contracts;
• the thick green line is built based on volumes from 16 contracts and above.

We observe a distinct stratification on the day when the technology stocks index was declining.

As seen from the blue line, small-cap traders did not believe that prices would continue to fall and showed initiative by buying futures.

Large-cap traders (green line) traded strictly in the direction of the intraday trend. This can also be interpreted as large orders influencing the market’s direction.

It is obvious that retail traders suffered a loss at the end of the day, in contrast to the “smart money“.

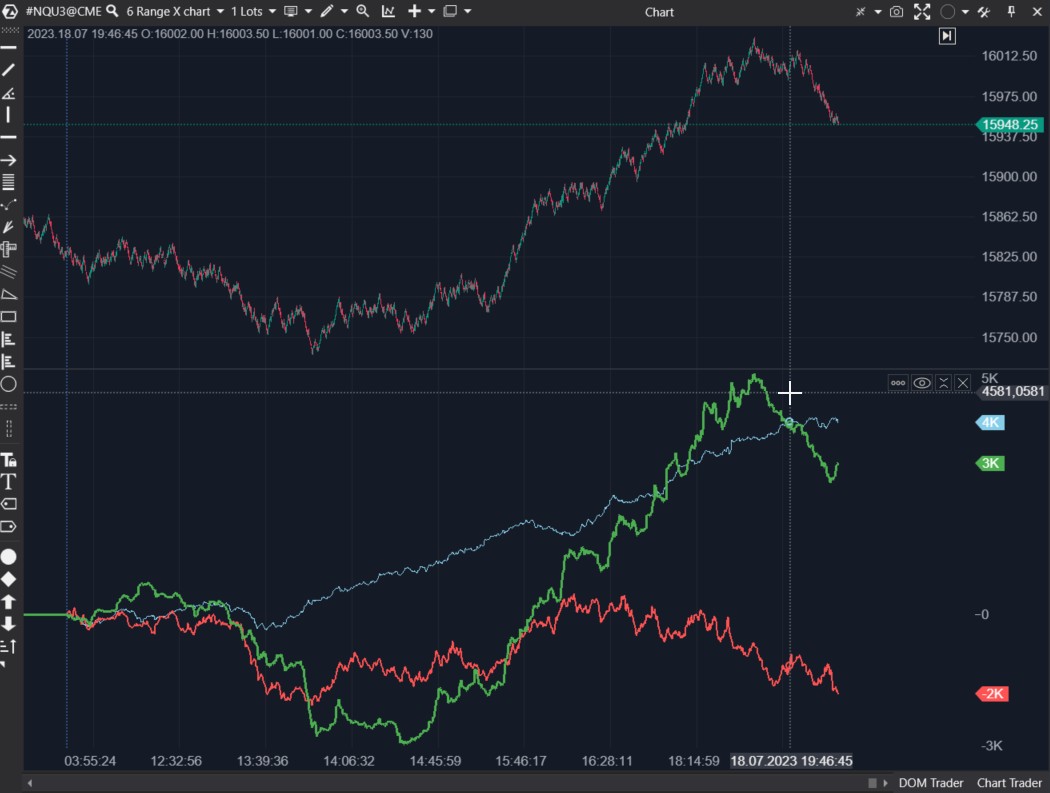

Another example with the same settings a couple of sessions earlier:

• at the low point of the day, we observe a sharp drop in the green CVD line;
• the highest price of the day aligns with a peak on the green CVD line.

Traders who were trading 1-2 contracts missed the downward reversal towards the end of the day.

The red line shows the activity of traders who started to take the initiative to sell too early.

Traders with medium volumes (the red line) attempted to catch the upward reversal at the beginning of the European session, but did they make a profit? Exiting without losses could have been a decent option.

Notice the sharp drop at the day’s price minimum. It occurred on the CVD line, which was constructed based on large volumes.

As seen from the candlestick dynamics, the day was bearish.

The blue line shows the dynamics of the CVD Pro indicator, which filters out all trades with a volume below 1 ETH.

Comparing the dynamics of the yellow and blue lines, you can notice that:

• the yellow line most accurately reflects the price trend movements, possibly because it is predominantly influenced by market orders of large volume;
• the blue line reflects the sentiments of small traders who preferred buying against the trend at market prices.

There was a price pump in the middle of the day. It may have had to do with Twitter and Musk. When the market “cooled down“, and the price dropped closer to its “moon launch“ levels, the enthusiasm of small traders did not subside, and they continued buying. Big capital acted differently – the blue line (small traders) runs counter to the yellow one.

Traders with small working volumes often act against the trend, making wrong decisions. Consider trading against the direction indicated by the cumulative delta line based on small volumes as a way to implement a Contrarian Trading strategy.

The ATAS platform enables you to take a snapshot of trader activity with different capitalizations using the Cumulative Volume Delta (CVD) Pro and Cumulative Volume Delta Pro (Multi) indicators with built-in filters.

By configuring the filters effectively, you can categorize traders based on their capitalization. As the examples above show, this will help you make more informed trading decisions.

We should also mention the Market Replay simulator of the ATAS platform, which allows you to save time on trading education without risking your capital. For instance, you can develop and test your own trading strategy based on the CVD Pro indicator in an environment that closely simulates real-market conditions.
